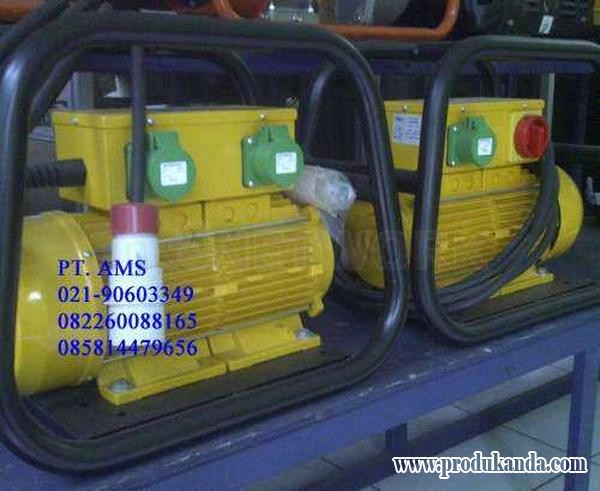

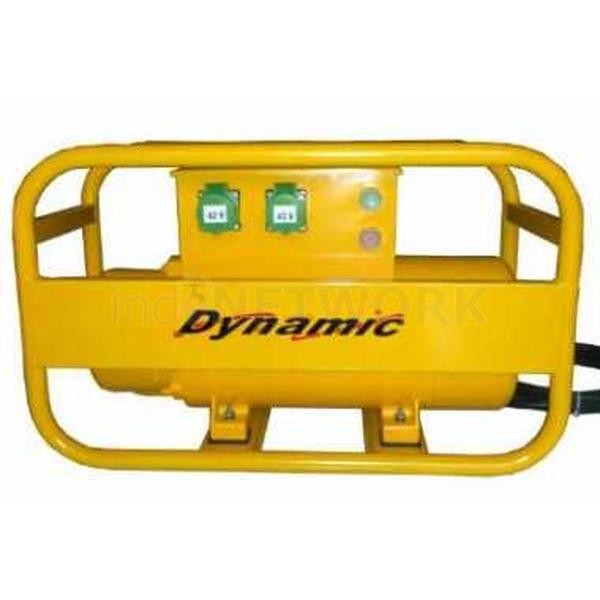

HIGH FREQUENCY CONVERTER = CONVERTER TYPE : DHF 25/ 2
> Drive : 220 V1 ~ > Input Power : 2, 5 kVa
> Output Curent : 25 A > Output Voltage : 42 V3 ~
> Output Frequency : 200 Hz > No. Of Outlet : 2
> Power Cable : 5 m > Weight : 37 Kg = CONVERTER TYPE : DHF 36/ 2
> Drive : 380 V3 ~ > Input Power : 3, 0 kVa > Output Curent : 36 A
> Output Voltage : 42 V3 ~ > Output Frequency : 200 Hz > No. Of Outlet : 2
> Power Cable : 5 m > Weight : 50 Kg = CONVERTER TYPE : DHF 54/ 3
> Drive : 380 V3 ~ > Input Power : 4, 5 kVa > Output Curent : 54 A > Output Voltage : 48 V3 ~
> Output Frequency : 200 Hz > No. Of Outlet : 3 > Power Cable : 5m > Weight : 58 Kg

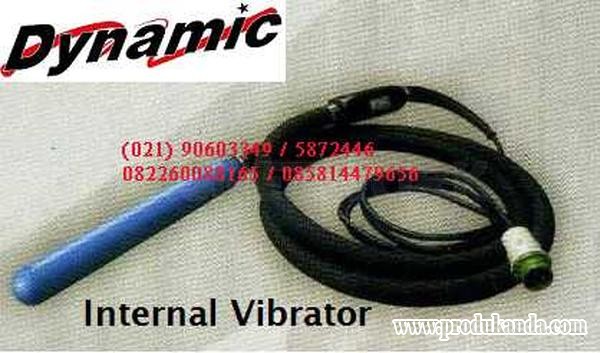

SHAFT / FLEKSIBEL / SELANG NAL VIBRATOR = TYPE : DIVO 38 =
> Diameter : 38 mm > Length ( mm) : 352 > Weight : 10 kg
> Power Source : 48 V 3 > Frequency : 200 Hz > Current : 8A
> Vibrating Freq ( rpm) : 12000 > Vibrating Amplitude ( mm) : 1, 8
> Centrifugal Force : 1, 0 kN > Hose Length : 5 m > Cable Length : 10 m
> Socket / Plug Male Model : Square = TYPE : DIVO 50 = > Diameter : 50 mm
> Length ( mm) : 390 > Weight : 13 kg > Power Source : 48V 3 > Frequency : 200 Hz
> Current : 12A > Vibrating Freq ( rpm) : 12000 > Vibrating Amplitude ( mm) : 2, 0
> Centrifugal Force : 3, 5 kN > Hose Length : 5 m > Cable Length : 10 m = TYPE : DIVO 60
> Diameter : 60 mm > Length : 436 mm > Weight : 16 kg > Power Source : 48V 3 > Frequency : 200 Hz
> Current : 16 A > Vibrating Frequency : 12000 rpm > Vibrating Amplitude : 2.2 mm > Centrifugal Force : 4.5 kN
> Hose Length : 5 m > Cable Length : 10 m
MORE INFORMATION =
* Telepon : ( 021 ) 22737666
* Email : agustamitrasukses@gmail.com
* MOBILE :
> Telkomsel : 081285037979
Info Produk
CONCRETE ELECTRIC VIBRATOR DYNAMIC DHF+DIVO
(HIGH FREQUENCY CONVERTER+SHAFT FLEXIBLE INTERNAL VIBRATOR )
